PTZOptics Link 4K PT30X-LINK-4K-WH SDI/HDMI/USB/IP PTZ Camera With 30x

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

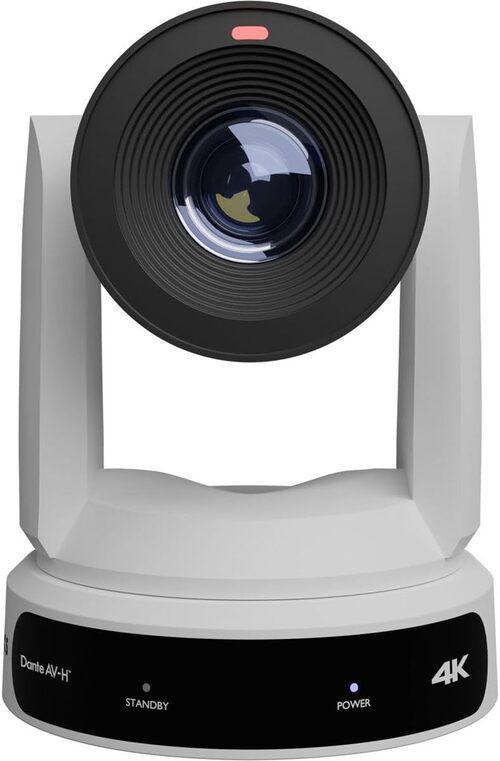

PTZOptics Link 4K PT30X-LINK-4K-WH SDI/HDMI/USB/IP PTZ Camera With 30x Optical Zoom - White

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the white Link 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom from PTZOptics. The Link 4K camera features the same 4K capture resolutions up to UHD 4K60 via IP and HDMI, up to 1080p60 over 3G-SDI, and it adds support for Dante AV-H audio and video routing. The Link 4K features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. Its wide dynamic range, 3D noise reduction, and handy Dante AV-H workflow capabilities provide a sharp, consistent image, even in low light. The camera's features include a 1/1.8" 4K CMOS 8.42MP sensor for crisp imagery. The built-in zoom lens has an optical zoom range of 30x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers or by using IR control with the included remote. It also features a tally light, and it is photo booth capable. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using Dante AV-H, SRT, RTSP, and RTMP protocols. The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream and a 3.5mm audio output. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network. Dante AV-H brings device interoperability and the power of Dante to H.26x endpoints. With Dante AV-H, all video and audio routing, configuration, and management of devices is done with one easy-to-use platform. Dante AV-H adds Dante audio to video devices that are independently routable and compatible with thousands of Dante products. Every Link 4K camera features SDI, HDMI, USB, and IP output for unparalleled performance and versatility. Using technology by Dante, the Link 4K can provide 1080p60 resolution over Dante AV-H, as well as SDI. The Link 4K's auto-tracking can lock onto a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Link 4K can track subjects up to 300' away. In addition to the Link 4K's auto-tracking features, users will also have access to the latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time. Users can control Link 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive, or Tricaster, or via a hardware joystick controller such as a PTZOptics IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow. Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and YouTube. Mount the Link 4K camera above, below, or beside the action using optional wall or ceiling mounts to capture the ideal view every time. The Link 4K's automatic video inversion feature senses the camera's orientation and saves time on installation and setup. Upgrade your meetings and presentations with NewBlueFX Titler Live 5 Present, now free for any PTZOptics customer. Create stunning graphics and data visualizations in minutes with the easy-to-use software, or use it to control your PTZOptics camera from anywhere on the network.

Model Number	PT30X-LINK-4K-WH
Product Name	PTZOptics Link 4K PT30X-LINK-4K-WH SDI/HDMI/USB/IP PTZ Camera With 30x Optical Zoom - White
Product Type	Camera
Color	White
Resolution & Frame Rate HDMI	3840x2160p - 60/59.94/50/30/29.97/25; 1920x1080p - 60/59.94/50/30/29.97/25; 1920x1080i - 60/59.94/50; 1280x720p - 60/59.94; 1024x576; 720x480; 720x408; 640x480; 640x360 - 60/59.94/50/30/29.97/25
Resolution & Frame Rate 3G?SDI	1920x1080p - 60/59.94/50/30/29.97/25; 1920x1080i - 60/59.94/50; 1280x720p - 60/59.94; 1024x576; 720x480; 720x408; 640x480; 640x360 - 60/59.94/50/30/29.97/25
Resolution & Frame Rate USB	3840x2160p - 30/25/24/20/15/10/7.5/5; 1920x1080p - 30/25/24/20/15/10/7.5/5; 1280x720p - 30/25/24/20/15/10/7.5/5; 1024x576 - 30/25/24/20/15/10/7.5/5; 720x480 - 30/25/24/20/15/10/7.5/5; 720x408 - 30/25/24/20/15/10/7.5/5; 640x480 - 30/25/24/20/15/10/7.5/5; 640x360 - 30/25/24/20/15/10/7.5/5
Dante AV?H Stream 1	3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360 (1-60 FPS)
Dante AV?H Stream 2	720x480, 720x408, 640x480, 640x360, 480x320, 320x240 (1-60 FPS)
Lens	(12X) Sony 1/2.5 Inches CMOS; (20X) Sony 1/1.8 Inches CMOS; (30X) Sony 1/1.8 Inches CMOS
Image Sensor	(12X) 8.51 MP, Effective 8.29 Meter; (20X) 8.42 MP, Effective 8.29 Meter; (30X) 8.42 MP, Effective 8.29 Meter
Optical Lens Focal Length	(12X) 4.4-52.8 Millimeter F1.8-2.6; (20X) 6.25-125 Millimeter F1.58-3.95; (30X) 7.1-210 Millimeter F1.61-5.19
Maximum Tracking Distance	(12X) 202 Feet (61.57 Meter); (20X) 264 Feet(80.47 Meter); (30X) 334 Feet (101.80 Meter)
Optical Lens FOV	(12X) Horizontal 6.9-72.5 Degree / Vertical 3.9-44.8 Degree; (20X) Horizontal 3.5-60.7 Degree / Vertical 1.9-34.1 Degree; (30X) Horizontal 2.5-59.2 Degree/ Vertical 1.4-34.6 Degree
Display Field of View	(12X) 82.8 Degree; (20X) 66.6 Degree; (30X) 66.7 Degree
Min Lux	0.5 Lux @ F1.8, AGC ON
Shutter	1/30 - 1/10000 Seconds
Pan Range	+-170 Degree
Tilt Range	-30 to +90 Degree
Pan Speed	0.7 - 100 Degree/ Second
Tilt Speed	0.7- 69.9 Degree/ Second
Presets	255
Preset Accuracy	0.1 Degree
Image Flip/Mirror/Freeze	Supported
RJ45	10/100/1000M Adaptive Ethernet
HDMI	Version 2.0
3G?SDI	BNC Type, 800mVP-p, 75?, SMPTE 424M
USB 2.0	Type A
Compression Standards	YUY2, MJPEG, H.264, H.265
Audio Interface	3.5 Millimeter Line Input & Output
RS232 Input	8-pin Mini DIN, 98.5 Feet / 30 Meter, VISCA / Pelco-D / Pelco-P
RS232 Output	8-pin Mini DIN, 98.5 Feet / 30 Meter, VISCA / Pelco-D / Pelco-P
RS485 I/O	2-pin Phoenix, 1200 Meter, VISCA / Pelco-D / Pelco-P
IR	4 IR Addresses, 30 Feet / 9 Meter
Power Supply	JEITA DC IN 12 Volts / PoE+ (802.3at)
Current Consumption	Maximum 1.0 Amps
Certifications	BIS, CE-EMC, CE-LVD, FCC, REACH, RoHS, UKCA
Software Certifications	ONVIF-S
Compliance	NDAA Compliant
Working Environment	Indoor
Dimensions	(12X/20X) 6.65 x 5.57 x 7.91 Inches; (30X) 7.12 x 6.69 x 8.98 Inches
Weight	(12X) 3.25 lbs. ; (20X) 3.25 lbs. ; (30X) 4.41 lbs.
