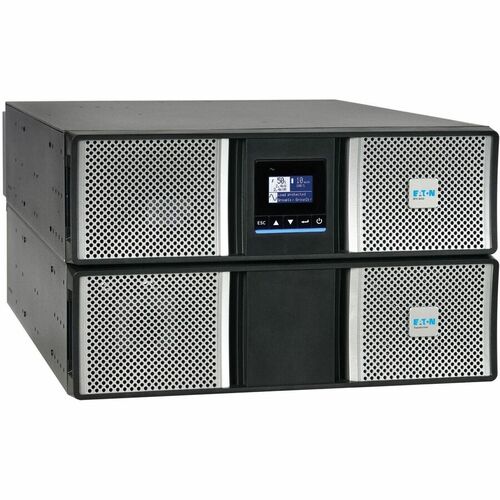

Eaton 9PX (6U Rackmount) 9PX5KTF5G2 Online Double-Conversion UPS

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

Eaton 9PX (6U Rackmount) 9PX5KTF5G2 Online Double-Conversion UPS - Cybersecure Network Card - 5000 Voltage - 5000 Watts - 200-240 Voltage - Hardwired Input - 18x 5-20R, 2x L6-20R, 1x L6-30R Outlets

This 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage critical IT equipment or destroy data. The 9PX5KTF5G2 is ideal power management for IT managers, data center managers, electrical contractors, integrators, specifying engineers and other end users in business, edge computing, education, government, healthcare, retail and other networking applications. With unity power factor (5000VA/5000W output), the 9PX5KTF5G2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, the 9PX5KTF5G2 complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Load segments with energy metering help you optimize energy use.

Model Number	9PX5KTF5G2
Product Name	Eaton 9PX (6U Rackmount) 9PX5KTF5G2 Online Double-Conversion UPS
Product Type	Double Conversion Online UPS
Color	Black
Battery type	Sealed, lead-acid
Extended battery capability	Up to 12 EBMs
Runtime at full load	3.5 min (5000 Watts)
Runtime at half load	9.4 min
Receptacle	(18) 5-20R, (2) L6-20R, (1) L6-30R, Hardwire (200-240 Voltage)
Topology	Online / Double-conversion
Wattage	5000 Watts
VA rating	5000 VA
Output waveform	True sine wave
Voltage	120/240 Voltage
Output power factor	1
Output voltage range	+-1% steady-state
Output frequency	50/60 Hertz
Input connection	L6-30P and hardwire
Input cord length	10 Feet
Input nominal voltage	208 Voltage default (200/208/220/230/240 Voltage)
Input frequency range	60 Hertz: 50-70 Hertz; 50 Hertz: 40-60 Hertz
Input power factor	>0.99 typical
Expansion slots	Mini-Slot (MS) with Gigabit Network Card (NETWORK-M3) included
Ethernet interface	Yes
Includes network card	Yes
Software compatibility	Brightlayer Data Centers suite
User interface	Graphical display, 5-button programmable menu, LED indicator
Altitude	3000 m
BTU Rating	Online: 655 BTU/hr; Battery: 935 BTU/hr; High Efficiency: 190 BTU/hr
Noise level	<43 dB at 1 meter
Relative humidity	0-95% non-condensing
Special features	Gigabit Network Card (NETWORK-M3) included
Rack size	6U
Rack mounting kit	Yes
Efficiency at max load	0.96
Surge protection	Yes
Internal bypass	Yes
Phase	Single Phase
Input Current	24.40 A
Display	LCD
DC System Voltage	180 Voltage DC
Battery Characteristics	Valve-regulated
Product Dimensions	Length/Depth 27 x Height 10.2 x Width 17.3
Product Weight	203 lbs
